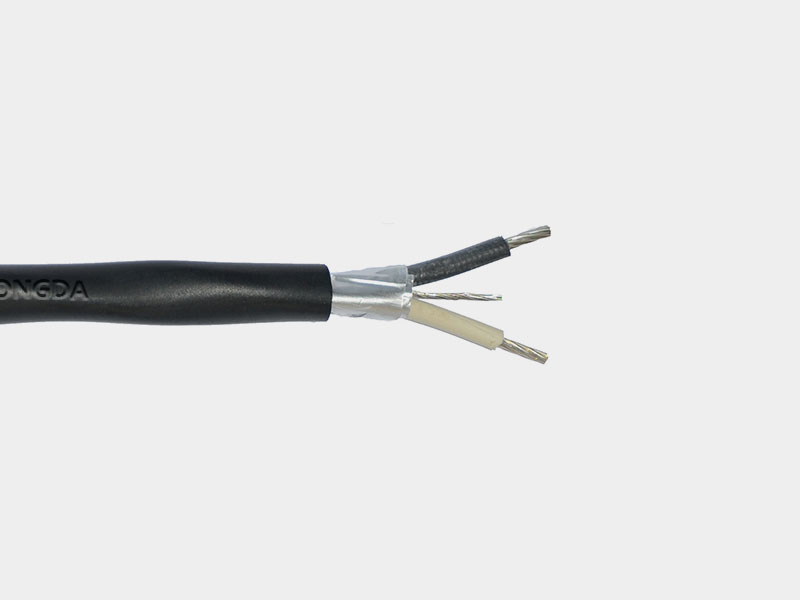

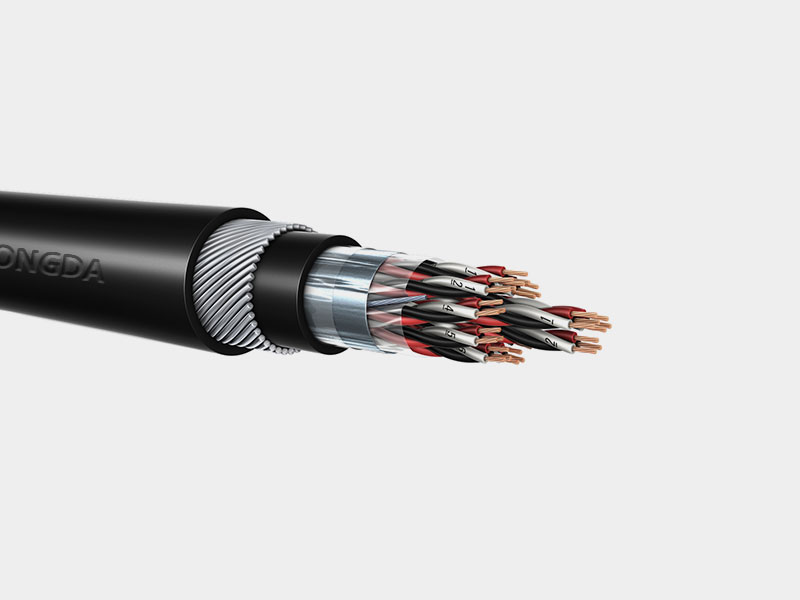

Instrumentation cable
Design Standards UL 13 (PLTC & PLTC-ER), UL 2225 (ITC-HL), UL 2250 (ITC & ITC-ER), ICEA S-73-532, BS 5308, EN 50288-7, AS/NZS 5000
Flame Retardancy Standards IEEE 1202, UL 1685, VW-1, FT4, IEC 60332
Temperature Rating -50ºC to 105°C, typical. Up to 260°C with fluoropolymers
Dekoron can offer a variety of ratings and standards for instrumentation products. Please discuss the specific rating and approvals with your customer service representative prior to placing your order. Depending on the cable design and selection of armor types, the following approvals are available:
Design Standards
UL 13 (PLTC & PLTC-ER), UL 2225 (ITC-HL), UL 2250 (ITC & ITC-ER), ICEA S-73-532, BS 5308, EN 50288-7, AS/NZS 5000
Flame Retardancy Standards
IEEE 1202, UL 1685, VW-1, FT4, IEC 60332
Temperature Rating
-50ºC to 105°C, typical. Up to 260°C with fluoropolymers.
Hazardous Zone Classifications
Class I, Division 1 & 2, and Class I, Zone 1, 2, & 3 Ratings are Available.
Other Options & Standards
Low Smoke Zero Halogen, per IEC 61034 and IEC 60754
Conductors per ASTM B3, B33, B8, and IEC 60228, AS/NZS 1125
REACH & RoHS Compliant.
ER (Exposed Run) rating is available for many constructions. ER rated cables are designed and tested for impact and crush resistance per UL criteria. With the ER rating, cables are allowed to run outside of trays or conduit for an unlimited distance, provided the cable is supported every 6 feet or less.
Depending on the size of the cable, the products are delivered on wooden reels up to 96” in diameter.
There is an option to lag wood reels using wooden planks that are secured to the outer edges of the reel to prevent damage to the cable while in transit. The wooden reels are heat-treated to comply with international phytosanitary requirements. Overseas shipments are crated. We also offer light-weight fiber board reels for air freight shipments.
The ends of the cables, known as the “pig tails,” are exposed on the reels for any testing at the receiving location, but sealed for shipment.
If requested Dekoron can provide Certificates of Conformance at the time of shipment.
